FMA Engineering Crossbows and Bows

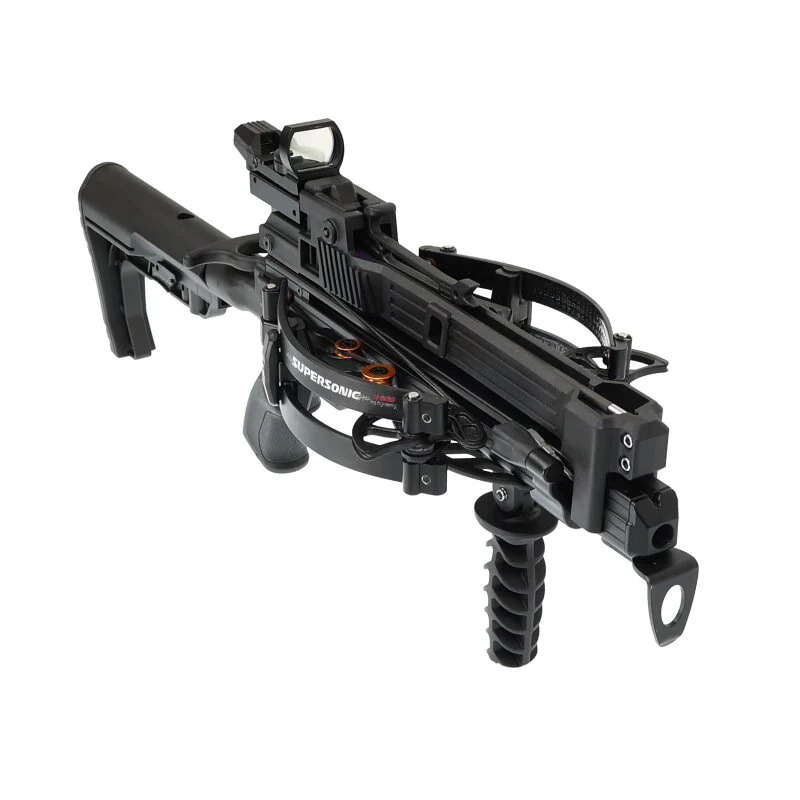

Nothing less than even more perfection was the goal for X-BOW FMA in the further development of the Supersonic REV. And this has been achieved! In the latest evolutionary stage, the X-BOW FMA Supersonic REV has a compact, slim, simply ingenious magazine which, at only 5.5 cm high, integrates perfectly into the design of the crossbow.

It holds up to six bolts, which are reloaded completely automatically and enable a fast firing sequence. Immediately after cocking, the next bolt drops onto the barrel and is ready for firing. As a special safety measure, the magazine locks after the last bolt and does not allow the crossbow to be cocked again. This not only lets the shooter know that the magazine is empty, but also prevents an empty shot from being fired unintentionally.

Of course, the magazine also has an integrated Picatinny rail, which allows any standard scope or Red Dot to be mounted.

Technical data:

Draw weight: 120 lbs

Bolt velocity:

310-340 fps with the Tactical bolts (135gr).

Kinetic energy: 52 joules

Minimum bolt weight: 100gr

Weight:

Supersonic REV: approx. 1.72 kg

Supersonic REV XL with triangle stock: approx. 2.00 kg

Supersonic REV XL with L-stock: approx. 1.96 kg

Power Stroke: 8.25 inches (approx. 21cm)

Draw weight when cocked: 52 lbs

Length:

Supersonic REV: approx. 42cm

Supersonic REV XL: approx. 61-67cm

Width ( cocked, axle distance): 4.9 inches (approx. 12.4cm)

Width ( cocked, total): 7.5 inches (approx. 19cm)

Width (uncocked, axle distance): 8.5 inches (approx. 21.7cm)

Width (uncocked, total): 11.4 inches (approx. 29cm)

Sight rail: 19 mm

Magazine capacity: 6 bolts

Strings and cables: Made in USA

Scope of delivery:

1x Crossbow

10x REV Tactical bolts

1x Red Dot

1x Wax

Mounting material

Multilingual manual

Please note: The X-BOW FMA Supersonic REV TACTICAL may only be shot with the Tactical bolts, Tactical Cutter bolts or bolts that are expressly suitable for the X-BOW FMA Supersonic REV TACTICAL. If other bolts are used, the warranty on the crossbow will be void, as visible or invisible damage to the crossbow may occur if other bolts are used.
